Filed Under Hitachi PCB | Comments Off

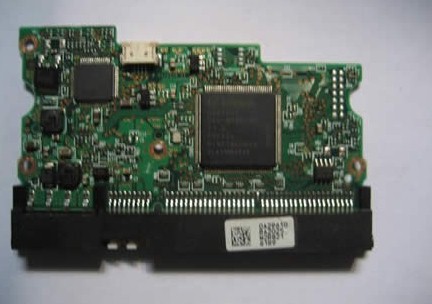

0A29181Hitachi PCB 0A29181

1. Need PCB Board for Hitachi HDT722516DLAT80.

First 2 lines of the sticker
0A29181
BA1438_

2. my back up 160 gig took a crap PCB only
if anyone knows any place that i can get one or at least point me in the direction that would most appreciated thanks a bunch
here is the info off the drive
M# HDT72251DLAT80 ATAIDE LES
CAPACITY 164GB RPM 7200
PN 0A31635 MLC BA1769
LBA 321.672.960 SECTORS CHS163831663
0A31635BA17690S61 SNTCDTAXRJ
MOTOR NO# B5324H, 13G0832, 5515, 228.
BOARDS WHITE STICKER: 0A29181, BA1438, XdD552, 03R3
No# ON THE CIRCUIT BOARD F A30317 01
MADE IN CHINA YANKEES-1
IN BIG LETTERS 48KJ

Order this pcb online: 0A29181

Jun

27

2060-701494-002

Filed Under Western Digital PCB | Comments Off

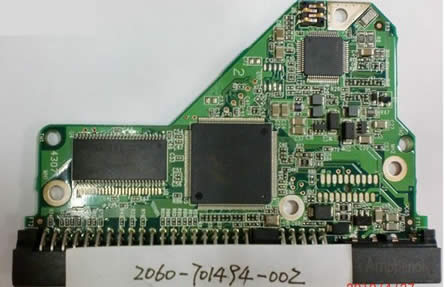

Western Digital 2060-701494-002 PCB Board.

2060-701494-0021. Van a gépemben két HDD. Az egyik 40Gb, ezen van az op. rendszer. A másik 320Gb, ezen van az összes többi adat.
Az egyik napról a másikra (este még működött, reggel már nem ismerte fela BIOS) a 320 Gb-os vinyó megadta magát. Sem a BIOS, sem a Windows nem ismeri fel.
Vagyis a BIOS annyira felismeri, hogy van ott egy slave HDD, de sem a típusát, sem a méretét nem tudja kiolvasni. Így a win betöltődésénél már nem is látszik a HDD. De a BIOS beállításban sem tudom felismertetni.
Utánanéztem a dolognak, és úgy néz ki, hogy az elektronikája adta meg magát.
A problémás HDD az alábbi:
Western Digital
WD3200AAKB
WD Caviar SE16
MDL: WD3200AAKB-00UAA0
DCM: HARCHV2CAN
Magán a nyák-on a következő felíratok vannak:
PWB
2060-701494-002
REV B
E222034
Szóval, ha valakinek volna otthon ebből a HDD-ből, és segíteni szeretne, küldjön egy elektronikát.
Ha ingyen nem megy, akkor megvenném a HDD-t, csak az elektronikája legyen jó! A hardware nem számít, ha rossz.

Order this pcb online: 2060-701494-002

Jun

27

PCB 100435196

Filed Under Seagate Barracuda 7200.10 PCB | Comments Off

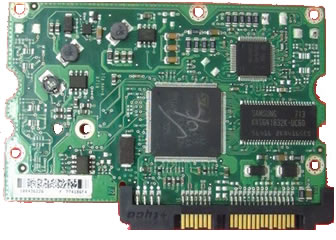

pcb 100435196 – Seagate Barracuda 7200.10 PCB

1. While trying to repair my old drive,

Supposedly from HDD:
S/N:9QF4DATB
ST3320620AS
P/N: 9BJ14G-308
Firmware: 3.AAK
Date Code: 07413
Site Code: TK
Product of Thailand
PCB Details as follows:
V520AA
SEAGATE
AAZZAAA
9E640039
990VC
MYS 99 711
Smooth
100369972
AAAAL VA
TWN 99 711
100435196 REV A

Order this pcb online: Seagate PCB 100435196

Jun

25

PCB 2060-771642-001

Filed Under Western Digital PCB | Comments Off

1. The son of a friend put 19V on a WD20EARS. It doesn’t spin…
I thought it was the TVS diode that burned. I removed a diode "D4" which was shorted (I mean let pass in both ways, sorry for my bad english).
The PCB P/N is 2060-771642-001 REV P1.
I can’t see other component burned, but unfortunately it was not enough to repair. Does someone now if I have to replace this TVD Diode on this particular model ? What other component may I test ?
By the way, the other diode "D3", on the right corner, seems good but I’m not sure what should be the values.

2. I need a replacement PCB for a Western Digital Caviar Green 1.5TB SATA drive. I accidentally applied power with reverse polarity and melted at least one chip on the PCB.
Here’s the info from the drive label:
MDL: WD15EADS-00S2B0
WWN: 50014EE2ADCDBBD5
DCM: HARCNV2AAB
LBA: 2930277168
R/N: 771642
Here’s the PCB version:
2060-771642-001 REV P1
I see three major parts on the underside of the PCB – a Marvell SOC (main processor), a SMOOTH chip (motor controller), and a Samsung memory module.
Here’s the info for the Marvell chip:
8818945P-TFJ2
YPMT014AW
0927 COP
Here’s the info for the SMOOTH chip:
L7251 3.1
The SMOOTH chip is the only one that’s visibly damaged. I’m hoping that any custom parameters for the drive are stored on the Marvell chip.
So.. does anyone have a replacement PCB? If so, which chip(s) do I need to move over from my broken PCB?
If I can’t find a PCB that matches, can I get away with just replacing the SMOOTH chip?

Order this pcb online: Western Digital PCB 2060-771642-001

Jun

25

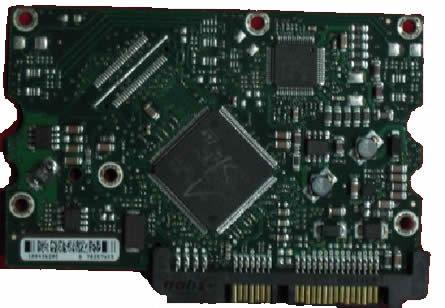

PCB 100406533

Filed Under Seagate Barracuda 7200.10 PCB | Comments Off

1004065331. suite a un crakage electrique mon pcb est naze
disuqe acheter en octobre 2007
sn:  9qg4l0f1
st3500630as
p/n  9bj146-505
firm  3aad
la grosse puce
lsi
100404225
seagate
yumacpa2-e16
0731k   3316617
3316617010b  a4
la petite puce :
smooth
100369972
aaabl v1
twn 99 731
sur l etiquette :  100406528   D  7809GRSN
pcb  100406533 REV A

2. Need PCB for:
Seagate 7200.10 320GB
ST3320620AS
P/N: 9BJ14G-305
Firmware: 3.AAE
Datecode: 07127
Sitecode: AMK
Barcode on PCB says:
100406528 C 7712P71E
On PCB says
100406533 REV A

Order this pcb online: Seagate PCB 100406533

Jun

25

PCB 2060-701675-001

Filed Under Western Digital PCB | Comments Off

2060-701675-0011. Want to buy
MODEL: WD10TMVV-11A27S2
CAPACITY: 1.0TB
DCM: HHBVJBBB
DATE: 06 JAN 2010-12-01
PCB: 2060-701675-001 REVP1

2. Hello,
Do you have this HDD?
Western Digital WD7500KMVV-11A27S2
VERY IMPORTANT:
PCB label: 2061-701675-401 AB
2060-701675-001 REV P1
Please PM me.
Thank you in advance for your help.

Oder this pcb online: Western Digital 2060-701675-001

Jun

25

PCB 2060-701494-001

Filed Under Western Digital PCB | Comments Off

2060-701494-0011. Item(s): PCB for WD3200AAJB-00WGA0 part no. WD 2060-701494-001 REV A , or a fully working hard disk WD3200AAJB-00WGA0.

2. Hi,This disk will not now spin up and is not recognised by the bios. I have seen earlier posts about this drive, but looking at the PCB, the important U12 chip is not there, just the label.
Does anyone have a PCB and if so, how do get the U12 data across when there is no U12 chip?

Order this pcb online: Western Digital PCB 2060-701494-001

Jun

24

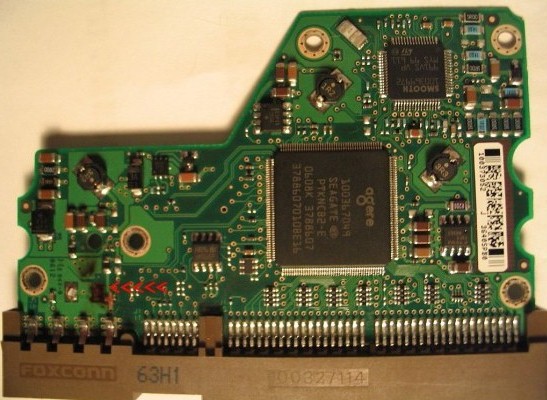

PCB 100368182

Filed Under Seagate Barracuda 7200.9 PCB | Comments Off

1003681821. I recently did something very stupid and am trying to fix it. I accidentally plugged a molex connector in backwards with the computer running and smoked my friends hard drive. I know…never, never etc…I’m still kicking myself. A 400GB drive and it was packed FULL of data that he needs back. I think it was the 5V TVS diode that blew, but not sure. Do you think I did more damage than just the PCB? The drive spins up and is recognized by name when connected to a IDE>USB adapter, but doesn’t show up in "My Computer". If someone has a matching PCB or entire drive, I’ll buy it and give it a try unless you think it’s a lost cause. Any help from the experts here would be GREATLY appreciated, as my friend is not very happy with me right now.
Drive Info:
Seagate ST3400633A 400GB 7200.9
P/N 9BD045-303
Firmware: 3.AAE
PCB Info:
Board# 100368182 REV A
Sticker# 100373052 J 3640SPB0

2. I am looking for a ST3300622A drive or PCB board with the following specs:
Model: Seagate Barracuda 7200.9 ST3300622A 300GB IDE 16MB cache
P/N: 9BD044-303
Firmware: 3.AAH
Date Code: 06453
Site Code: TK
On the PCB white sticker: 100373052 J 7639NCKF
My current drive is not powering up. If you have one, please contact me I would like to buy it. that number is 100368182 REV A

Order this pcb online: Seagate PCB 100368182

Jun

24

PCB 2060-771642-000

Filed Under Western Digital PCB | Comments Off

2060-771642-0001. Looking for this PCB 2060-771642-000

2. Ostatnio po powrocie do domu miałem niemiłą niespodziankę – po włączeniu komputera dysk twardy nie wystartował. Po wyłączeniu pc i spojrzeniu do obudowy okazało się, że dysk jest cały mokry… Po osuszeniu, wymyciu elektroniki w izopropanolu, oraz oczyszczeniu śladów korozji pędzelkiem z włókna szklanego dalej zima – nie wykrywany w BIOSie, nawet silniczek nie startuje.

Planuje kupić nowy dysk dla samej elektroniki, aby odzyskać dane i mam pytanie do zajmujących się tym profesjonalnie – czy same przełożenie elektroniki wystarczy? Czytałem gdzieś(na jakiejś stronie zajmującej się odzyskiem danych, że w tych dyskach część firmwareu jest zapisana na talerzach i mogą być problemy po przełożeniu elektroniki od innego dysku. Czy to prawda, czy chwyt "marketingowy", a jeżeli prawda to jak to "ugryźć"?
Zajmuje się serwisem GSM, także ew. przelutowanie potrzebnych układów nie stanowi najmniejszego problemu.

Drugie pytanie co do doboru elektroniki. HDD to dokładnie WD15EARS-00S8B1. Czy końcówka 00S8B1 ma kluczowe znaczenie (domyślam się, że pewnie tak) i co ona oznacza (tak z ciekawości)? W okolicznych sklepach i znajomych hurtowniach są dostępne tylko WD15EARS-00Y5B1 oraz WD15EARS-00Z5B1 – ryzykować podstawienie elektroniki z tych dysków czy szanse są bliskie zeru? Na co jeszcze zwracać uwagę przy doborze elektroniki?

Order this pcb online: Western Digital PCB 2060-771642-000

Jun

24

PCB 100387575

Filed Under Seagate Barracuda 7200.9 PCB | Comments Off

1003875751. j’aimerais savoir s’il est possible de changer la PCB d’1 DD?? et si oui, comment et où s’adresser?

mon problème est le suivant: j’ai récupéré un DD SATA Seagate de 160 Go, qui a été mal démonté d’une mini-tour Acer, ce qui fait que le connecteur SATA est cassé – il démarre bien, mais n’est pas repéré par le BIOS au démarrage du PC.

2. j’ai un petit probleme avec mon disque dur qui ne démare plus , il s’agit d’un seagate 200Go . Sur le circuit imprimé (réf : 100387575 REV C ) il manque un composant . J’ai des fichiers assez important sur ce dd et j’aimerais savoir s’il est possible de trouver le composant manquant et de le souder ? ou d’acheter le circuit imprimé avec les composants indépendament du dd ?

Order this pcb online: Seagate PCB 100387575
