Standard Hard drive head (for inner park heads) swap replacement repair tool for Seagate, Western Digital, Samsung, Hitachi, Maxtor, Fujitsu, IBM HDDs.
Tool for: HDD head swap;

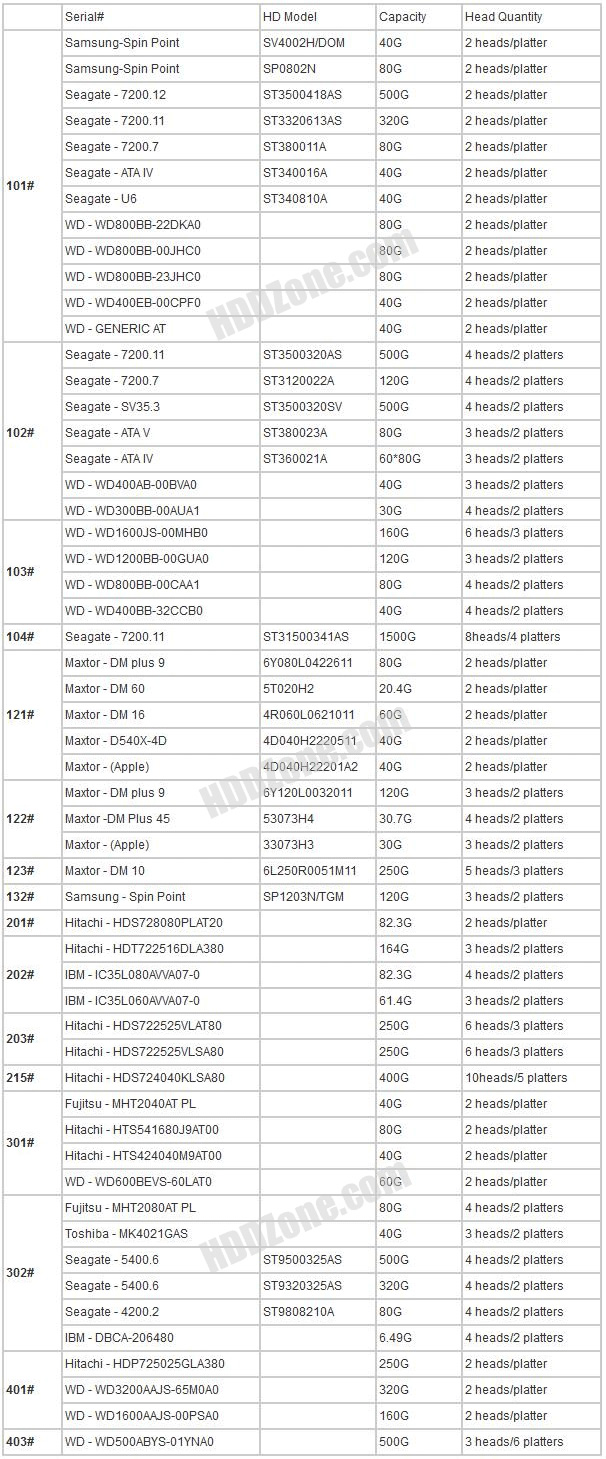

Suit for hard drives: Seagate, Western Digital, Samsung, Hitachi, Maxtor, Fujitsu, IBM, etc. (Some support List)
Suit for hard drive form factors: 2.5", 3.5", SATA, IDE, SAS, SCSI;
Category: Hard drive repair tools - Hard drive head repair tool;
Difference between HDD Head Combs Tool A & B
1. Standard HDD Head Combs Tool A:
For hard drives with heads resting on a landing zone located on the inner side of the platters. (HDD Head Inner Park)
2. Standard HDD Head Combs Tool B:
For hard drives that have heads resting on a landing zone consisting of head ramps located just outside the platters. (HDD Head Outer Park)
We strongly recommend that you also purchase another set of heads swap tool: Standard HDD Head Combs Tool (B). These two sets of tools are complementary. With these two sets of tools, you can safely replace most of the hard disks' heads.
| Item No. | For HDDs | HDD Platters | HDD Heads |
| 101# | 3.5" HDDs
(Head Inner Park) | 1 | 2 |
| 102# | 2 | 3-4 |
| 103# | 3 | 5-6 |
| 104# | 4 | 7-8 |
| 105# | | 9-10 |
| 121# | 3.5" Maxtor Series HDDs | 1 | 2 |
| 122# | 2 | 3-4 |
| 123# | 3 | 5-6 |
| 132# | 3.5" HDDs
(Head Inner Park) (Thick) | 2 | 3-4 |
| 133# | | 5-6 |
| 201# | 3.5" HDDs
(Head Outer Park) | 1 | 2 |
| 202# | 2 | 3-4 |
| 203# | 3 | 5-6 |
| 215# | 5 | 9-10 |
| 301# | 2.5" HDDs | 1 | 2 |
| 302# | 2 | 3-4 |
| 303# | 3 | 5-6 |
| 304# | 4 | 7-8 |
| 401# | 3.5" HDDs
(Head Outer Park) (Thick) | 1 | 2 |
| 403# | 3 | 5-6 |

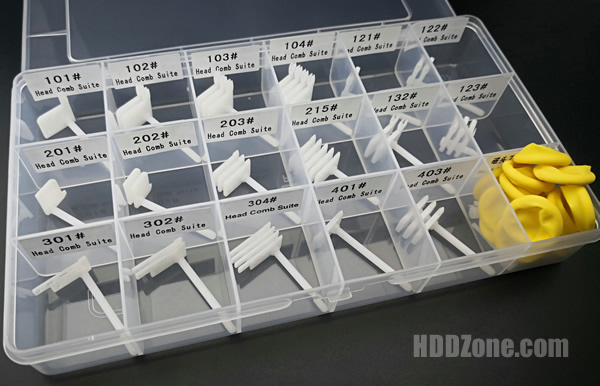

HDD Head Combs Tool
HDD Head Combs
Separate hard disk heads to prevent head damage.
HDD Head Combs Tool Features:
Practical Applications
Professional and friendly Simultaneous design to work on multiple heads separation at the same time; Consistent design to physically and equally separate the heads;
High Efficiency & Accuracy:To ensure the easy move in/ out of the parking zones during the head replacement operation.
Physical effective head separation:
Maximize the security of head replacement while the ability of tremor resistance is increased;
Fix effectively: Fix the head arms and head replacement toolkit by inserting the locking pins into the arms;
Manage Donor Heads Effectively:
Easily keep and manage your donor heads with head replacement toolkit so that you don't bother each time installing the donor heads back to the hard drives;
Note: Before you can use this tool very well, you need to have some experience of head replacement or have used familiar head replacement products or you need more practice on the toolkit, you should have clean room environment or at least one qualified clean bench. We are not responsible for any damage done directly or indirectly due to improper use of tools.
Because of various sizes and models, Hard drive head replacement tool kit can't support all hard drives at all, for hard drives which are not supported in this list, you can find the most suitable tool to match;
If you're not sure which model to use, you can email us the photos of the hard drive, and we will recommend the suitable model for you.
