HDD PCB BIOS

We know most Hard Drive PCB has the BIOS(ROM/NVRAM). The BIOS includes the unique information to access the HDD's system area. If the BIOS information is not compatible with your HDD, there is no way to read the HDD's data. So we should find the BIOS, then move the original PCB's BIOS to the replacement PCB.

We should know which is the BIOS.
Most PCB's BIOS is the 8pins (4 pins on each sides) with 25P05VP、25P10VP、25F512、25F1024、25F1024AN、SST25VF512、SST25VF010, etc.


Hard Drive PCB's BIOS/ROM Chip

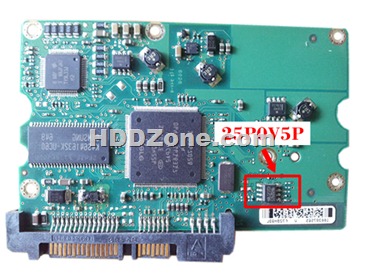

1. Some Seagate PCBs have BIOS chips, the others are missing the BIOS chips. For Example: Seagate PCB 100468303


Seagate Hard Drive PCB's BIOS/ROM Chip

If the PCB is missing the BIOS, you can directly swap this PCB.

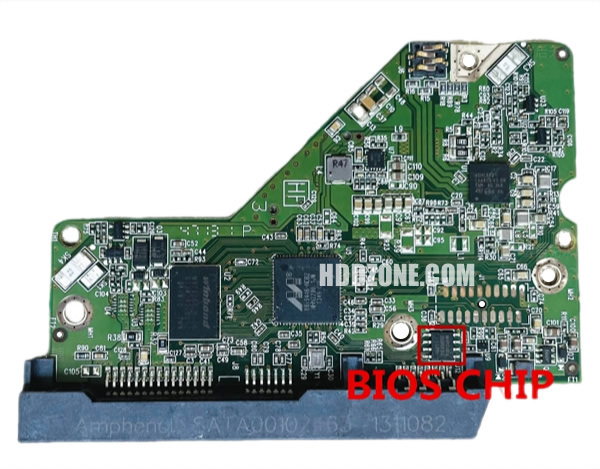

2. Some Western Digital PCBs have BIOS chips, the others are missing the BIOS chips. For Example: Western Digital PCB 2060-771642-001


WD Hard Drive PCB's BIOS/ROM Chip

Sometimes if the PCB is missing the BIOS chip, maybe the PCB's BIOS information is integrated on the Main Controller IC. You should exchange the Main Controller IC to let the HDD be recognized.

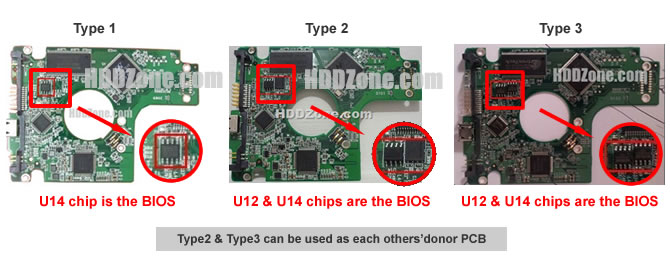

Some Western Digital PCBs have the different types BIOS. For Example: Wester Digital PCB 2060-701675-004


WD Hard Drive PCB's BIOS/ROM Chip

3. Some PCB has 2 BIOS. For Example: Hitachi PCB 0A53129, Hitachi PCB 0A58730


Hitachi Hard Drive PCB's BIOS/ROM Chip/NVRAM

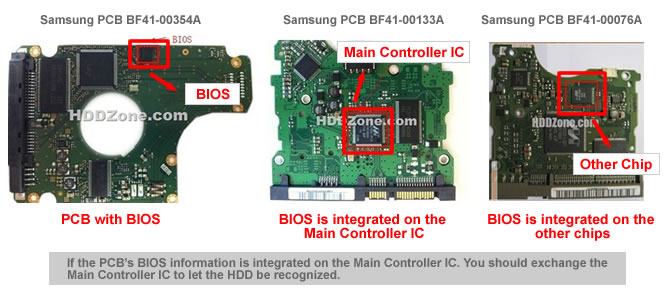

4. Samsung PCB's BIOS is special: some has the 8pins BIOS. Some is integrated on the Main Controller IC. Some is integrated on the other chips. For Example: Samsung PCB BF41-00354A, BF41-00133A, BF41-00076A


Samsung Hard Drive PCB's BIOS/ROM Chip/NVRAM

Video: Swap HDD PCB BIOS Chips

HDD PCB BIOS swapping is also called HDD PCB Firmware Transfer, the following video will show you how to swap the BIOS Chips. You can swap the BIOS chips yourself with a hot-air gun. Hard Drive PCB Firmware Transfer

If you still can't find the BIOS from your PCB, please feel free to contact us: sales@hddzone.com
